Inside an AI Personalization Platform for Banks: From Data to Decisioning to Delivery

The first two parts of this series covered buying criteria and the business case for an AI personalization platform for banks. This part opens the technical black box: how is such a platform actually built so that raw data becomes a delivered recommendation within milliseconds? If you're instead interested in the decision logic itself — the factors that determine a recommendation — see How a Next-Best-Action Engine Decides.

The short answer first

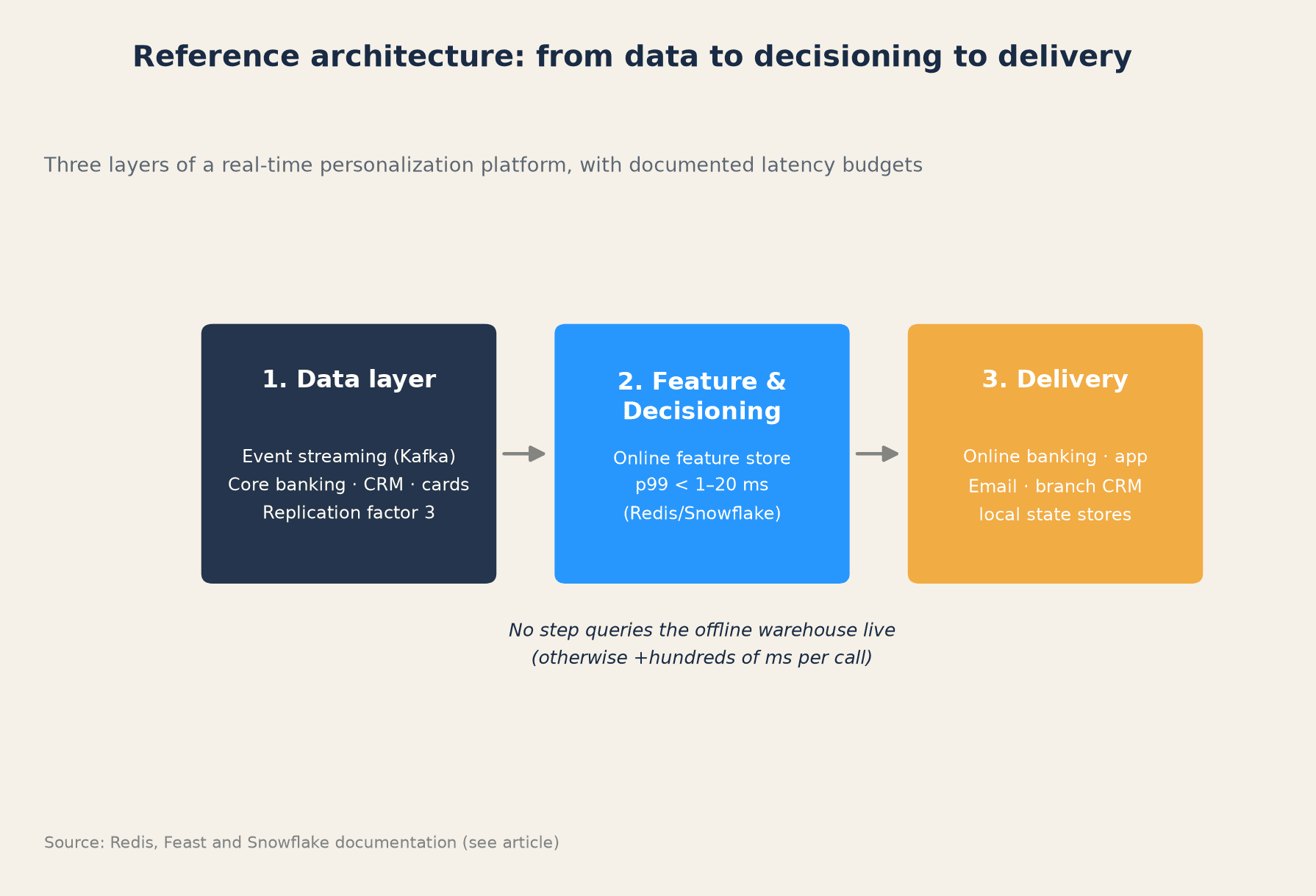

An AI personalization platform for banks is built from three technical layers: a data layer that ingests raw data in real time, a feature and decisioning layer that serves attributes with latencies in the low single-digit-to-tens-of-milliseconds range, and a delivery layer that pushes the recommendation to the relevant channel. The critical architectural mistake to avoid: no step in this chain should query an offline data warehouse directly in the request path.

Why the warehouse has to disappear from the request path

The obvious but wrong approach is to read features directly from the analytical data warehouse on every request. That works for reporting, but not for real-time personalization: direct access to an offline warehouse adds hundreds of milliseconds per inference call, which makes real-time serving effectively impossible (Redis documentation, "Redis feature store"). The fix is a dedicated online feature layer purpose-built for this read path: feature vectors for inference endpoints under 1 ms P99, sub-millisecond read and write access, millions of reads per second from a single shard, with horizontal scaling beyond that (Redis documentation).

The three layers in detail

Data layer. Raw data from the core banking system, CRM and card processing flows in through an event-streaming layer. Kafka, as the reference technology, guarantees exactly-once processing, strict ordering within a topic partition, decoupling of producers and consumers, and continued operation without data loss if a server fails (Apache Kafka documentation). In a production configuration, that typically means a replication factor of 3 — three copies of every record — while partitioning enables parallel reads and writes across many brokers, with performance remaining "effectively constant with respect to data size" (Apache Kafka documentation).

Feature and decisioning layer. This is where the real speed advantage is built. An HMGET call returns the feature subset a model needs in a single round trip; features for hundreds of entities can also be read in one round trip via pipelining (Redis documentation). Measured benchmarks show how much the choice of server implementation matters: for 25 feature views with 10 features each (250 features total), a Java feature server hits p99 ≈ 1.3 ms over Redis, versus ≈ 45 ms for a Python server — for batch requests of 100 entities and 50 features, that's 17 ms versus 125 ms, a 5- to 7-times difference (Feast, "Feast Benchmarks"). As a throughput reference from the same measurement: roughly 5,000 requests per second at a 100 ms timeout with 50 concurrent clients, at over 99.9% success rate (Feast Benchmarks).

Delivery layer. Local state stores, or local tables within stream processing, reduce processing latency and load on remote databases because not every record requires a network lookup (Confluent documentation, "Optimize Confluent Cloud Clients for Latency"). From here, the finished recommendation is delivered to the relevant channel — online banking, app, email or branch CRM.

Storage choice determines latency

Not every online store delivers the same speed, and the difference is substantial. At batch size 1 with 50 features, Redis measures 8.4 ms versus 465 ms for GCP Datastore — a 10- to 20-times difference — and 15 ms versus 129 ms for DynamoDB; DynamoDB only overtakes Redis at a batch size of roughly 30 (Feast Benchmarks). These numbers show why storage technology is an architectural decision with direct business impact, not just an infrastructure detail: a feature layer that's too slow limits how many decisions per second a bank can make in real time at all.

As a managed alternative with documented service-level objectives, Snowflake's Online Feature Store cites p50 = 10 ms, p95 < 15 ms and p99 < 20 ms serving latency for its REST query API (Snowflake documentation, "Online feature store"). Snowflake names fraud detection, recommendations and personalization explicitly as primary use cases for this latency class; real-time feature views are computed at request time itself (Snowflake documentation).

Freshness is a design decision, not a side effect

An architecture has to define how "fresh" a feature needs to be before it becomes unusable — and this differs materially by feature type. Common practice uses different expiration windows per feature type: streaming features around 5 minutes, batch features 24 hours, implemented technically via HEXPIRE/HTTL from Redis 7.4+ (Redis documentation). The reasoning is a deliberate fail-safe principle: if an ingestion pipeline goes down, features should expire rather than silently serve stale values to the model (Redis documentation). In Snowflake's setup, the freshness budget is end-to-end freshness under 2 seconds for stream ingestion; the offline-to-online sync is configurable via target_lag from 10 seconds to 8 days, with effective delay resulting from refresh frequency plus target_lag (Snowflake documentation).

A well-known failure mode a clean reference architecture must explicitly avoid: a hand-built cache in front of the warehouse lowers latency but creates training-serving skew — the features used at inference time drift from those used during training, and model accuracy quietly degrades (Redis documentation). That is exactly why the feature layer should be designed as a standalone, consistent component rather than an improvised cache.

The latency-throughput trade-off in the streaming layer

Architectural decisions in the event-streaming layer flow directly into end-to-end latency. A higher partition count increases throughput but can raise end-to-end latency because replication takes longer before messages are considered "committed" (Confluent documentation). For low latency, specific tuning parameters apply: linger.ms=0, compression.type=none and acks=1 on the producer side — the default has been acks=all since Kafka 3.0 — plus fetch.min.bytes=1 on the consumer side and TOPOLOGY_OPTIMIZATION=OPTIMIZE for Kafka Streams (Confluent documentation). In the reference architecture, Spark typically handles nightly batch materialization while Flink or Kafka Streams write real-time features via HSET with their own freshness window into the same entity hash; Feast supports Redis as a first-class online store for exactly this purpose (Redis documentation).

Governance as an architectural component, not an afterthought

For automated decisions with legal or similarly significant effects, human intervention, the ability to express a viewpoint, and the ability to contest the decision must be technically guaranteed (GDPR Art. 22(3)) — for the architecture, that means audit trails, reason codes and a human-in-the-loop path need to be planned as components from the start, not bolted on afterward (GDPR Art. 22). There is also an architecturally relevant scoping note: credit assessment and credit scoring are classified as high-risk under Annex III(5)(b) of the EU AI Act, while systems for detecting financial fraud are explicitly excluded (EU AI Act, Annex III). Cleanly separating these model classes into distinct pipelines within the same architecture meaningfully reduces compliance overhead, because high-risk requirements don't then spread automatically to every model on the platform.

How Acceleraid implements this architecture

Acceleraid's CDP & Data Governance consolidates data in real time from CRM, core banking and card processing as a system of record — with consent management, lineage, PII protection and German hosting built for GDPR-by-design (Platform). On top of that, the Prediction Engine & AI Framework computes affinity, churn, propensity and NBA scores in an explainable, auditable way, while CLM/CVM orchestration delivers those scores in real time — factoring in contact-frequency limits and channel preferences — to online banking, app, email and branch CRM (Banking). The platform is built to be model-agnostic: the underlying AI model can be swapped without losing the accumulated knowledge, context or configuration of the existing architecture — a principle validated in practice across more than 3.5 billion analyzed transactions and over 250 enterprise deployments (Platform).

Conclusion

A defensible reference architecture for personalization in banking cleanly separates three layers: data ingestion via event streaming, a dedicated feature and decisioning layer with latencies in the low tens of milliseconds, and a delivery layer with no live access to the analytical warehouse. The choice of storage technology, the freshness design per feature type, and how deeply governance requirements are embedded in the architecture all determine success just as much as model quality does. Skip a clean separation between these three layers, and sooner or later you'll run into trouble with latency, model accuracy, or regulatory defensibility.
